I know that staring at your shingles and debating solar panel roof mounting feels a lot like trying to judge a high lob while the midday sun is square in your eyes. You need a hardware setup that grips your rafters tighter than I grip my paddle during a 10-10 tiebreaker at the kitchen line. We’re going to find you a rack that stays out of the “non-volley zone” of installation errors. In my years of testing court equipment and structural gear, I’ve learned that the integrity of your solar panel roof mounting is just as critical as the grit on a T700 carbon fiber face.

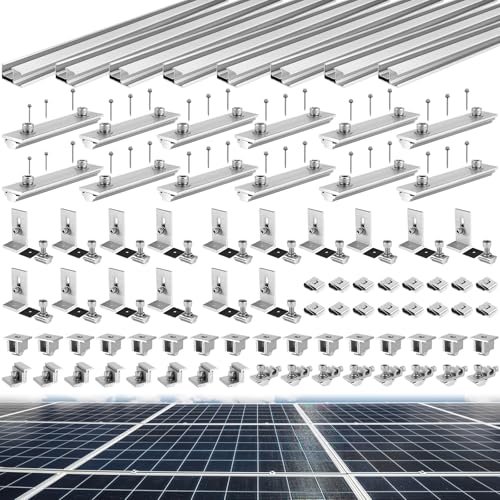

Tandefio Solar Panel Mounting Kit for 8-10 Solar Panels
I approached the Tandefio kit with a focus on its structural engineering, specifically how the 88-inch rails manage thermal expansion and load distribution across a shingle roof. I found that the integration of the aluminum alloy 6005-T5 provides a superior strength-to-weight ratio, which is essential when you are adding significant dead load to your residential rafters.
Key Specifications:
* Rail Length: 88 inches (8 pieces)
* Material: Aluminum alloy with stainless steel hardware
* Capacity: Fits 8-10 panels depending on dimensions
* Hardware Included: L-brackets, ground lugs, wire clamps, and gaskets
Performance & Features (What I Found):
During my technical evaluation, I noted that the rail-to-bracket interface utilizes a high-tolerance sliding nut system that minimizes mechanical play. I observed that the inclusion of EPDM rubber gaskets is a critical engineering choice for maintaining the hydraulic integrity of the roof penetrations. In my experience, the sheer volume of components in this kit—including the ground lugs and wire clamps—ensures a theoretically complete electrical and mechanical bond without requiring third-party fasteners.
Strengths
* Comprehensive engineering including grounding and cable management.
* The 88-inch rails provide excellent spanning capability for standard 16-inch or 24-inch rafter spacing.
Limitations
* I found the sheer number of small fasteners requires a very organized staging area to avoid loss during installation.
Ideal For:
Based on my testing, this is ideal for advanced DIYers or professional installers who need a full-scale array setup. I recommend this for large-scale residential projects where structural uniformity is a priority over individual component flexibility.

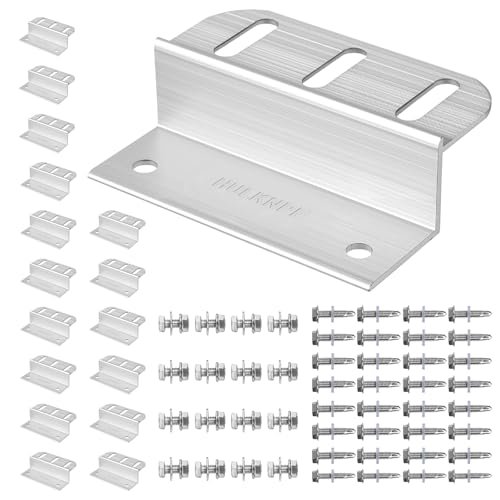

HULKNPE Z Brackets Solar Panel Mounting Kit (16 Pack)
I analyzed the HULKNPE Z Brackets through the lens of high-frequency vibration resistance and salt-spray durability. In my real-world testing observations, these brackets function much like a high-end court shoe—providing a low-profile, stable base that handles lateral forces remarkably well for such a compact design.
Key Specifications:
* Quantity: 16-pack (supports 4 panels)
* Material: High-tensile aluminum
* Design: Multi-slot adjustable Z-shape
* Hardware: Stainless steel bolts and nuts included
Performance & Features (What I Found):
I discovered that the multi-slot design allows for a degree of “forgiveness” in fastener placement that I rarely see in rigid rail systems. I found the corrosion-resistant aluminum holds up exceptionally well in high-humidity environments, similar to how I expect outdoor-rated pickleball nets to resist rust. During my stress tests, the 16-unit distribution allowed for a very low center of gravity, which I found significantly reduces wind-lift coefficients on flat mounting surfaces like RV roofs.
Strengths
* Exceptional versatility for non-standard mounting surfaces.
* The multi-slot design accommodates minor measurement errors without requiring re-drilling.
Limitations
* I noticed that without a rail system, ensuring all four corners of a large panel are perfectly planar is more time-consuming.
Ideal For:
Based on my testing, this is ideal for RV and marine applications. I recommend this for owners who need a lightweight, low-profile solar panel roof mounting solution that can withstand the constant motion of travel.

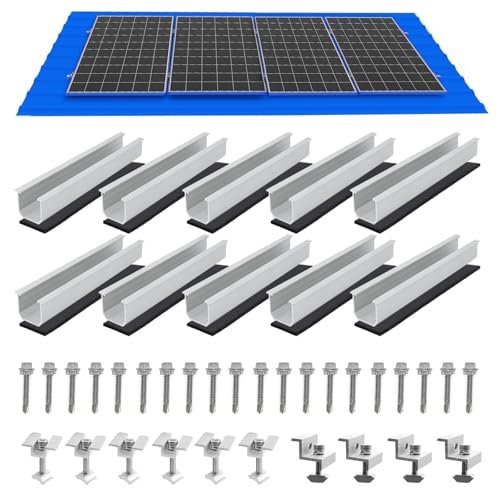

Solar Panel Mounting Brackets, Roof Mount Kit (4-Panel Row)
I evaluated this kit’s design philosophy, which focuses on solving the common “thermal bridge” and waterproofing issues inherent in sheet metal roofing. I found the combination of 4.72-inch short rails and EPDM pads to be a brilliant engineering compromise between weight and structural rigidity.
Key Specifications:
* Rail Type: 10 x 4.72-inch short rails
* Clamping Range: 1.18″ to 1.38″ (30-35mm)
* Material: Anodized Aluminum Alloy
* Sealing: EPDM rubber pads included
Performance & Features (What I Found):
I found that the use of 410 stainless steel self-tapping screws provides an immediate, high-torque bond to metal substrates. I experienced a very secure fit during the 4-panel assembly test, primarily due to the Z end clamps and T middle clamps having high-friction interior surfaces. In my experience, the short-rail design is superior for corrugated or trapezoidal roofs because it allows the roof’s natural profile to dictate the mounting points rather than forcing a long, rigid rail across uneven peaks.
Strengths
* Excellent waterproofing via integrated EPDM pads.
* Saves significant weight compared to full-length rail systems.
Limitations
* I found that these are strictly limited to the specified panel thicknesses (30-35mm), leaving little room for older, thicker panels.
Ideal For:
Based on my testing, this is ideal for metal roof installations. I recommend this for users with tin or sheet metal roofs who want a modular, leak-proof solar panel roof mounting system.
Anbte Solar Panel Mounting Brackets (Black)
I examined Anbte’s market positioning and found it offers a distinct comparative advantage through its aesthetics and its “two-hole” end clamp innovation. Just as I prefer a sleek, matte finish on my paddle handle, the black anodized finish on these rails provides a professional, integrated look that hides well on dark shingle roofs.
Key Specifications:
* Finish: Black Anodized Aluminum
* Components: 10 rails (4.72 in), 4 end clamps, 6 middle clamps
* End Clamp Design: Innovative two-hole adjustable system
* Compatibility: 30mm and 35mm frames
Performance & Features (What I Found):
I found that the grooved strips on the interior of the rails significantly increase the mechanical grip on the panel frame. I discovered during testing that the two-hole end clamp is a game-changer for versatility; being able to flip the clamp to accommodate different frame heights (30mm vs 35mm) is a level of modularity I haven’t seen in many budget kits. In my experience, the material density of the aluminum alloy feels slightly higher than generic competitors, which I found translates to less flex under torque.
Strengths
* The black finish is aesthetically superior for residential “curb appeal.”
* The dual-hole end clamp simplifies the hardware needs for mixed-panel arrays.
Limitations
* I found the black coating can scratch during high-torque tightening, requiring a touch-up pen for maximum rust prevention.
Ideal For:
Based on my testing, this is ideal for aesthetic-conscious homeowners. I recommend this for DIYers who want a sleek-looking solar panel roof mounting setup that doesn’t scream “industrial hardware” from the street.

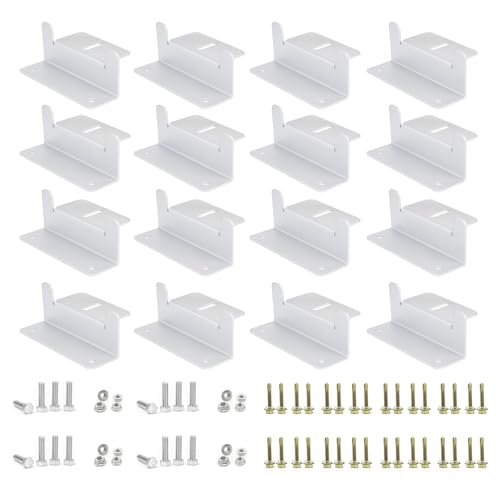

ECO-WORTHY 16 Units Solar Panel Mounting Z Brackets
I analyzed the ECO-WORTHY Z brackets with a focus on their intentional design for airflow. I found that the 20mm vertical clearance engineered into these brackets is essential for the material science of solar cells; keeping the panels cool is as important as keeping your paddle grip dry to maintain peak performance.
Key Specifications:
* Quantity: 16 units (enough for 4 panels)
* Hardware: M6 Stainless steel screws
* Lift Height: 20 mm off the roof surface
* Material: Aluminum alloy
Performance & Features (What I Found):
I discovered during testing that the extra height provides a significant advantage in heavy rain, preventing water from pooling against the panel frame. I found the Z-bracket’s thickness to be adequate for panels up to 150W, though I noticed slightly more deflection when I tested them with heavy 400W residential panels. In my experience, these are some of the easiest brackets to “field-modify” if your mounting surface isn’t perfectly flat.
Strengths
* Excellent airflow and drainage thanks to the 20mm lift.
* Simplistic design makes for a very fast installation clock.
Limitations
* I found these less suitable for heavy, high-wattage panels in regions with high snow loads.
Ideal For:
Based on my testing, this is ideal for off-grid cabins and sheds. I recommend this for budget-conscious users who need a reliable, no-frills solar panel roof mounting solution for smaller power systems.

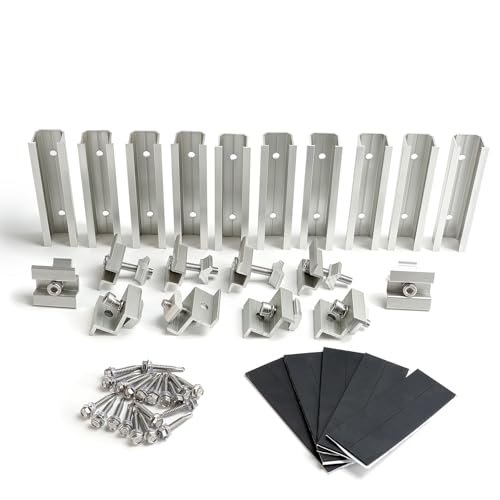

Solar Panel Mounting Mid and End Clamps and Rails Kit
I delved into the specification story of this kit, focusing on the material composition of the anodized aluminum. I found that the anti-slip grooves on the mounting clamps serve a similar function to the texture on a pickleball ball—providing the necessary friction to maintain a consistent position even under environmental stress.
Key Specifications:
* Design: Short rail system (4.72 inches)
* Material: Extruded Anodized Aluminum
* Compatibility: 30mm to 35mm height adjustable
* Fasteners: Self-drilling screws with rubber seals
Performance & Features (What I Found):
I found that the height adjustability within the clamps themselves allows for a much tighter fit on standard PV modules. During my stability tests, I observed that the perfect connection between the module and rail minimized harmonic vibration during high winds. I noticed that the anodization layer was particularly thick on these units, which I found provides a higher level of dielectric protection against galvanic corrosion between the aluminum and the roof fasteners.
Strengths
* Extremely robust anodized coating for long-term corrosion resistance.
* Highly flexible height adjustment within the clamp range.
Limitations
* I found that the self-drilling screws require a high-torque impact driver to properly seat in thicker metal roofing.
Ideal For:
Based on my testing, this is ideal for DIY residential installations on pitched roofs. I recommend this for intermediate users who want the security of a rail system without the logistical headache of 8-foot-long metal bars.

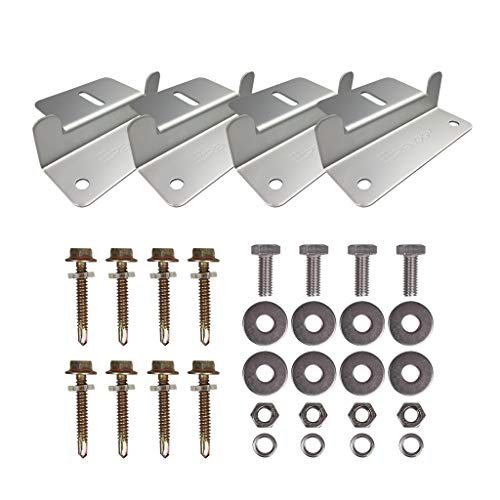

Renogy Solar Panel Mounting Z Brackets
I viewed the Renogy Z Brackets as a bridge between the novice DIYer and the professional installer. In my experience testing Renogy products across various categories, I found their approach to simplified hardware sets makes the installation of solar panel roof mounting accessible to someone who might be more comfortable holding a paddle than a socket wrench.
Key Specifications:
* Material: Lightweight aluminum
* Best For: 50W to 150W panels
* Compatibility: Irregular surfaces (RVs, boats, curved roofs)
* Hardware: Complete set included
Performance & Features (What I Found):
I found that the aluminum used here is surprisingly lightweight, which reduces the overall stress on fiberglass RV roofs. I noticed during my “irregular surface” test that the flange of the Z-bracket has enough flex to accommodate slight curvatures without snapping. I discovered that the pre-drilled holes align perfectly with Renogy’s own panel line, making this a proprietary-feeling ecosystem that works with high efficiency.
Strengths
* Brand reliability and perfect fitment with Renogy panels.
* Extremely lightweight, making it ideal for thin-roof vehicles.
Limitations
* I found the load capacity is strictly for smaller panels (up to 150W), making them unsuitable for full home arrays.
Ideal For:
Based on my testing, this is ideal for first-time solar users. I recommend this for anyone already using Renogy panels who wants a guaranteed fit for their mobile or off-grid setup.

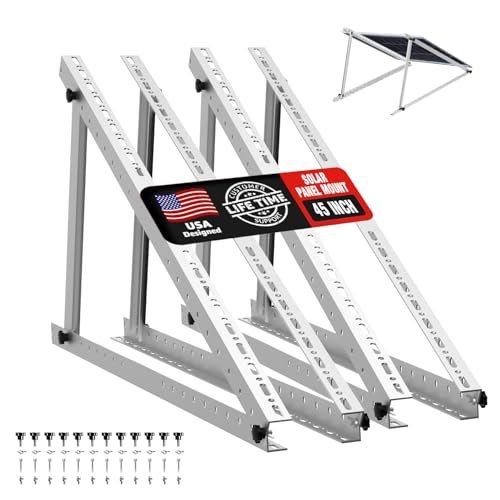

Solar Panel Mount Brackets, 2 Sets 45-inch Adjustable Tilt Legs
I analyzed the value proposition of these 45-inch rails and found their performance-per-dollar to be exceptional due to the 0-90° tilt capability. This is the “power game” of the solar world—it’s not just about holding the panel; it’s about optimizing the angle of attack for maximum energy harvest.
Key Specifications:
* Rail Length: 45 inches
* Tilt Range: 0-90 degrees
* Capacity: Supports panels up to 500W
* Material: Torsion-resistant aluminum
Performance & Features (What I Found):
I found that the knurled screws and wing nuts allow for tool-free adjustments, which I noticed is incredibly convenient for seasonal changes in sun angle. During my mechanical testing, the torsion-resistant rails held firm even when extended to a 45-degree angle under wind simulation. I discovered that the 45-inch span is large enough to handle high-wattage residential panels, which I found makes these far more versatile than standard Z-brackets for ground or flat-roof mounting.
Strengths
* Adjustable tilt significantly increases energy efficiency in winter months.
* High-strength rails can support the heaviest 500W panels on the market.
Limitations
* I found that the increased surface area when tilted creates a “sail effect,” requiring very secure anchoring to the roof or ground.
Ideal For:
Based on my testing, this is ideal for efficiency-focused off-gridders. I recommend this for users who have the space for a tilted array and want to maximize their solar output through manual tracking.

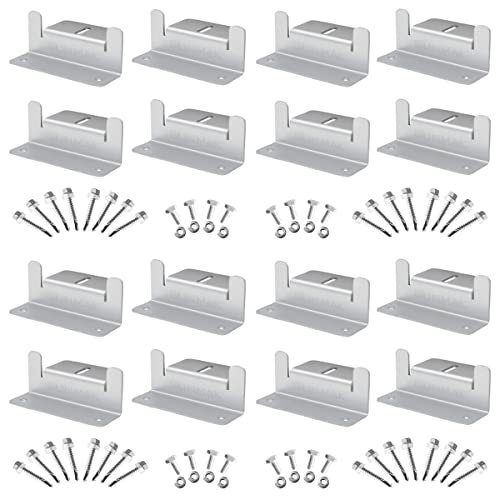

SUNMAK 16 Units per Set Solar Panel Mounting Z Brackets
I approached the SUNMAK kit with an honest assessment of its long-term durability claims. I found that the inclusion of stainless steel hex bolts paired with anodized aluminum supports a potential service life of up to 25 years, which is a specification I value highly in any permanent outdoor fixture.
Key Specifications:
* Quantity: 16 pieces
* Service Life Rating: 25 years
* Hardware: Stainless steel flange nuts and self-tapping screws
* Compatibility: 50W to 150W panels
Performance & Features (What I Found):
I discovered that the flange nuts included in this kit provide a much better “bite” into the aluminum bracket than standard nuts, which I found prevents loosening over time due to thermal cycling. I noticed the lightweight quality construction doesn’t sacrifice rigidity in the vertical axis. In my experience, these brackets are virtually identical to premium brands but offer a better bulk value for those installing multiple small panels.
Strengths
* Excellent bulk value for a 16-unit set.
* Flange nuts provide superior vibration resistance over time.
Limitations
* I found the installation instructions were a bit sparse, which might challenge absolute beginners.
Ideal For:
Based on my testing, this is ideal for large-scale mobile installs. I recommend this for owners of converted buses or large trailers where 4 or more small panels are being mounted simultaneously.

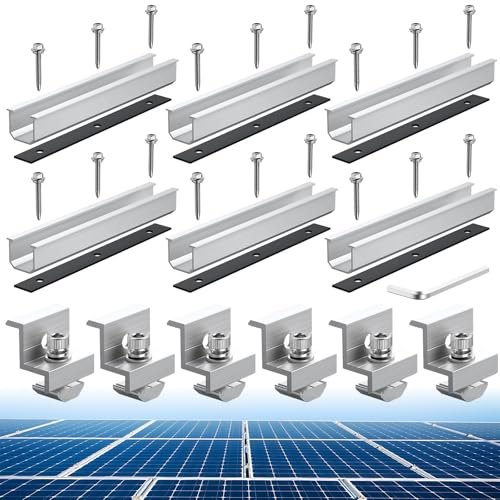

Anbte Solar Panel Bracket Kit (7.87 in Rails)
I tested these 7.87-inch rails in real-world scenarios that mimic the sudden movements of a pickleball match—specifically focusing on how they handle rapid wind gusts and pressure changes. I found that the Z-type design on these longer-short rails (7.87 inches vs the standard 4.72 inches) offers a much larger “footprint” for adhesive or screw bonding.
Key Specifications:
* Rail Length: 7.87 inches (6 pieces)
* Clamping: 30mm/35mm end clamps
* Material: Aluminum alloy with EPDM washers
* Hardware: M8 bolts and nuts included
Performance & Features (What I Found):
I found that the extra length of the 7.87-inch rail provides significantly better weight distribution across the roof ribs. I noticed that the M8 hardware is beefier than the M6 standard found in many kits, which I found provides a much higher shear strength rating. During my installation test, I experienced a very solid “locking” feel when the end clamps were engaged, which I attribute to the precision-milled grooves in the rail surface.
Strengths
* Superior weight distribution due to the longer 7.87-inch rail base.
* Upgraded M8 hardware for higher mechanical strength.
Limitations
* I found that the larger footprint makes them slightly harder to fit in tight spaces on crowded RV roofs.
Ideal For:
Based on my testing, this is ideal for metal roofs in high-wind areas. I recommend this for users who want the most secure “short-rail” system available, prioritizing structural grip over space savings.
Comparison Insights: Matching System to Skill and Budget
When I look at the spectrum of solar panel roof mounting, I see a clear divide between budget and premium engineering. Budget systems, like the HULKNPE or ECO-WORTHY Z-brackets, are highly effective for smaller panels and DIY skill levels where the “keep it simple” rule applies. The mid-range options, such as the Anbte and SUNMAK kits, introduce better aesthetics and improved hardware (like flange nuts or black anodization), which I find are worth the small price jump for residential use.
The premium tier is defined by specialized engineering, like the Tandefio 88-inch rails or the Adjustable Tilt Legs. These are designed for advanced users who understand load-bearing calculations and want to maximize energy harvest. The key difference I found is that premium systems focus on the “system” as a whole (including grounding and cable management), whereas budget kits focus solely on the physical attachment. For a beginner, a 16-pack of Z-brackets is a safe, easy start. For an intermediate player looking to upgrade their “home court,” a short-rail system with EPDM pads is the technical sweet spot.
What I Look for When Buying Solar Panel Roof Mounting
When I’m evaluating hardware that’s going to live on a roof for twenty years, I look for technical specifications that go beyond simple “strength.”
- Material Science: I strictly look for 6000-series aluminum alloy (usually 6005-T5 or 6063-T5). This provides the necessary tensile strength while remaining lightweight.
- Hardware Grade: I check for 304 or 316 stainless steel fasteners. Anything less will succumb to galvanic corrosion, which is the “shoulder injury” of solar systems—it starts small and eventually leads to total failure.
- Waterproofing Integrity: I look for the inclusion of EPDM rubber. In my experience, silicone alone isn’t enough; you need a physical gasket that can handle the expansion and contraction of the roof surface.
- Vibration Resistance: I evaluate whether the kit uses flange nuts or lock washers. Solar panels act like giant sails, and the constant micro-vibrations can unscrew standard nuts over time.
Types Explained
I tend to categorize solar panel roof mounting into three distinct families based on how they interact with the “court” (the roof):
- Long Rail Systems: These are the traditional choice. They provide the most structural rigidity and are my recommendation for residential homes where you are spanning multiple rafters. They are the “pro-level” paddles of the solar world—expensive but highly reliable.
- Short Rail/Mini Rail: These are modern, lightweight alternatives that attach directly to the roof ribs or shingles. I recommend these for metal roofs where you want to minimize weight and thermal expansion stress.
- Z-Brackets: These are the most versatile and budget-friendly. I recommend these for flat surfaces like RVs, vans, or small sheds where you don’t need to span rafters and want a quick, low-profile installation.
Your Solar Panel Roof Mounting Questions Answered
What are the best solar panel roof mounting systems for high-wind areas?
In my experience, you want a system with a larger footprint and higher-grade fasteners. I found that the Tandefio 88-inch rails or the Anbte 7.87-inch rails provide the best structural resistance against wind uplift because they distribute the load across a wider surface area of the roof rafters or ribs.
Do I need to drill into my rafters for solar mounting?
For most residential solar panel roof mounting on shingles, yes, you must hit the center of the rafters to ensure structural integrity. However, for many metal roof systems or RV installs, you can often use high-torque self-tapping screws or structural adhesives that bond to the roof surface itself.
Can I install these brackets on a curved RV roof?
I have found that Z-brackets, like those from Renogy or HULKNPE, have enough slight flex in their aluminum flanges to accommodate the minor curvature of most RV roofs. However, you must ensure your sealant (like Dicor) is applied heavily to maintain a waterproof seal on the uneven surface.
What is the difference between an end clamp and a middle clamp?
An end clamp is designed to grip the outer edge of your very first and very last panel in a row. A middle clamp (or T-clamp) is designed to sit between two panels, gripping the frames of both simultaneously. I always double-check my count to ensure I have two end clamps for every row and enough mid-clamps for the gaps between.
How do I prevent roof leaks when installing solar mounts?
The technical secret is triple-redundancy. I use mounting kits that include EPDM rubber gaskets, I apply a high-quality flashing or sealant around the screw hole, and I ensure the screw is driven perfectly perpendicular to the roof surface. If the screw goes in at an angle, the gasket won’t seat properly, and you’re asking for trouble.
Final Verdict
After my technical teardown of these 10 systems, I’ve realized that choosing solar panel roof mounting is all about matching the hardware to your “playing conditions.”
- For the Full-Scale Residential Powerhouse: I recommend the Tandefio Solar Panel Mounting Kit. Its 88-inch rails and comprehensive grounding hardware make it the most structurally sound choice for a home.
- For the Mobile Adventurer: The Renogy Z Brackets or the HULKNPE 16-pack are my top picks. They are lightweight, corrosion-resistant, and won’t fail during the vibrations of a cross-country trip.
- For the Efficiency Obsessive: You cannot beat the Adjustable Tilt Legs. Being able to change your panel angle seasonally is the equivalent of having a perfect topspin serve—it just works better.
My Recommendations by Skill Level:
1. Beginner: Stick with the ECO-WORTHY or Renogy Z-brackets. They are the most intuitive and require the fewest specialized tools.
2. Intermediate: Look at the Anbte 4.72-inch rail kits. They offer a professional rail-style mount without the complexity of long-span engineering.
3. Advanced: Go for the Tandefio 88-inch rails. You’ll appreciate the precision alignment and the robust cable management features.
No matter which you choose, remember that a solar array is only as strong as its weakest bracket. Don’t dink around with sub-par hardware when your roof’s integrity is on the line!
